Ballistic Plate ESAPI Multi Curve , Monolithic SiC

  • 1 - 9 Pieces
  • 10 - 99 Pieces
  • >=100 Pieces
Model Number:
MS-4E285361SA MS-4E265342SA MS-4E246323SA MS-4E227303SA S-4T150150SA S-4T150200SA
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 10000 10001 - 20000 >20000
Est. Time(days) 20 30 60 Negotiable
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)


Graphic customization (Min. Order: 10 Pieces) Less
$200.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
LiTai Armor
Monolithic Silicon carbide + UHMWPE
Multi curve
Out Finish:
600D Oxiford Fabric , water and fire resistant
Protection Level:
NIJ0101.06 level IV STAND ALONE
Bullet stop:
7.62*61mm M2 AP
Shooting Test Distance:
Shoots per plate:
1 shot
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
5 PCS for body plates into a CARTON
15 PCS for side plates into a CARTON
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 10000 10001 - 20000 >20000
Est. Time(days) 20 30 60 To be negotiated


-Life Guard Ballistic Expert Solution Provider for Armors-

Product Description


ModelSizeCeramic CoverageWeightThicknessCurvatureProtection Level
MS-4E285361SA285*361280*356mm3.70±0.1kg27±2mmMultiNIJ0101.06 Level IV
 MS-4E265342SA265*342 260*337mm3.20±0.1kg 27±2mm MultiNIJ0101.06 Level IV
 MS-4E246323SA246*323 241*318mm 2.90±0.05kg 27±2mm MultiNIJ0101.06 Level IV
 MS-4E227303SA227*303 222*298mm 2.40±0.05kg 27±2mm MultiNIJ0101.06 Level IV
S-4T154205SA154*205 150*200mm 1.10±0.05kg 27±2mmSingleNIJ0101.06 Level IV
 S-4T150150SA150*150 140*140mm 0.82±0.05kg 27±2mm SingleNIJ0101.06 Level IV

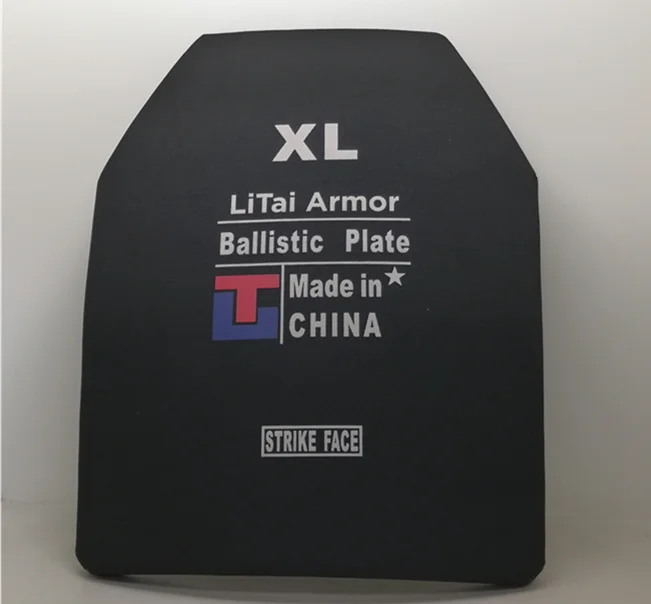

ESAPI Size XL 285*361mm

LiTai Armor provides high ballistic performance NIJ 0101.06 Level IV ESAPI monolithic plates with Silicon carbide ceramic and high quality UHMWPE .

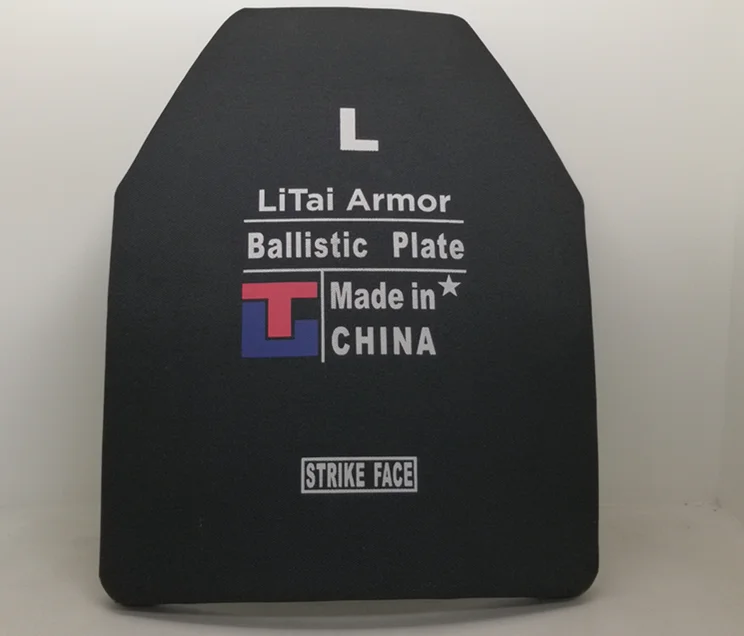

ESAPI Size L 265*342mm

Our ESAPI plates have been tested in several laboratory over the world .

  • The ESAPI plates stop the following threats:
  • Several shots for 7.62x51 M80 NATO
  • Several shots for 7.62x39 AK47 MSC
  • Several shots for 5.56x45 SS109/M193
  • One shot for 7.62x63  M2 AP  or 7.62x54R API B32

ESAPI Size M 246*323mm

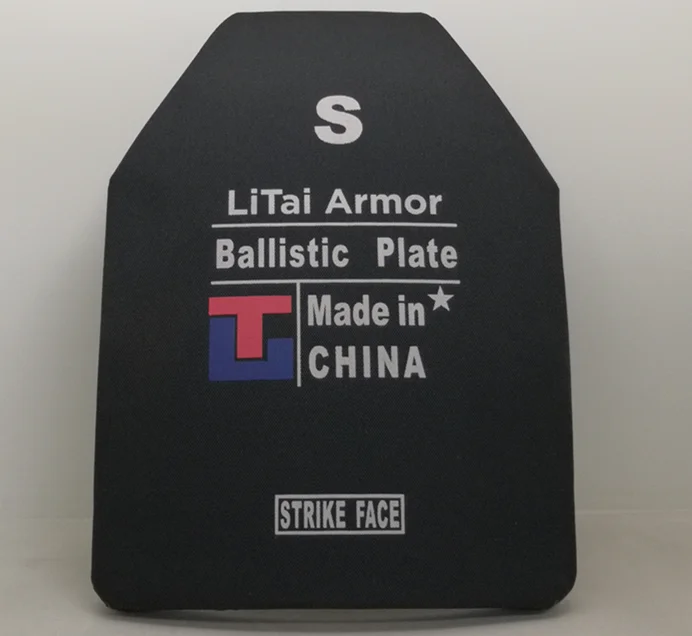

ESAPI Size S 227*303mm

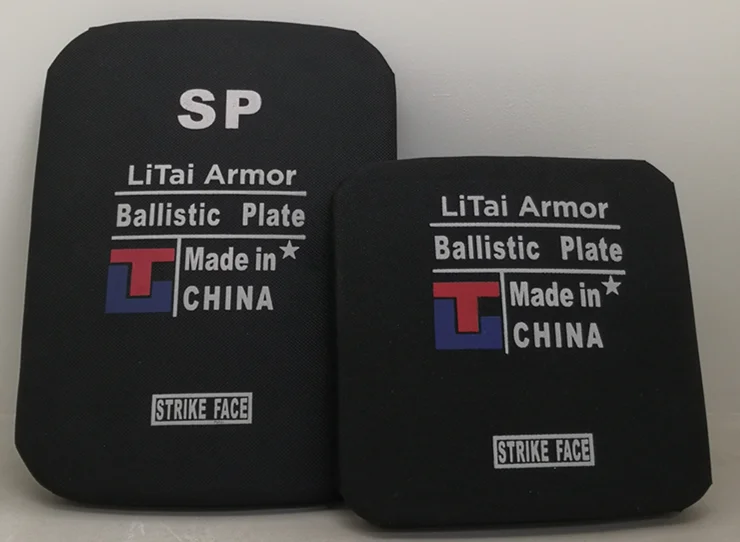

ESAPI SP Plate 150x200mm -150x150mm

Packaging & Shipping

Company Information


 Established in2003,Zhejiang Light-Tough Composite Materials Co.Ltd. is a China leading manufacturer and exporter that is concentrated in body armor products,including bulletproof plates,bulletproof/Stab-resistance vests,ballistic helmets and ballistic shields.

With substantial experience in material science and practical applications of protective solutions,Light-Tough is responsible for developing and providing the highest level of protective products to military,police,law enforcement and civilians throughout the world.

Contact information

 We provide customized ballistic ceramics and optimized protection performance based on requirements.If you need more details about our products,please contact us.
